Lot 130
Estimate$3,000 – $5,000
To request further details about this lot, please email [email protected]
Tim Carey
Associate Vice President, Head of Department, Arms, Armor and Militaria
Ms. Emma Fulmer
ATF Manager, Senior Coordinator, Arms, Armor & Militaria

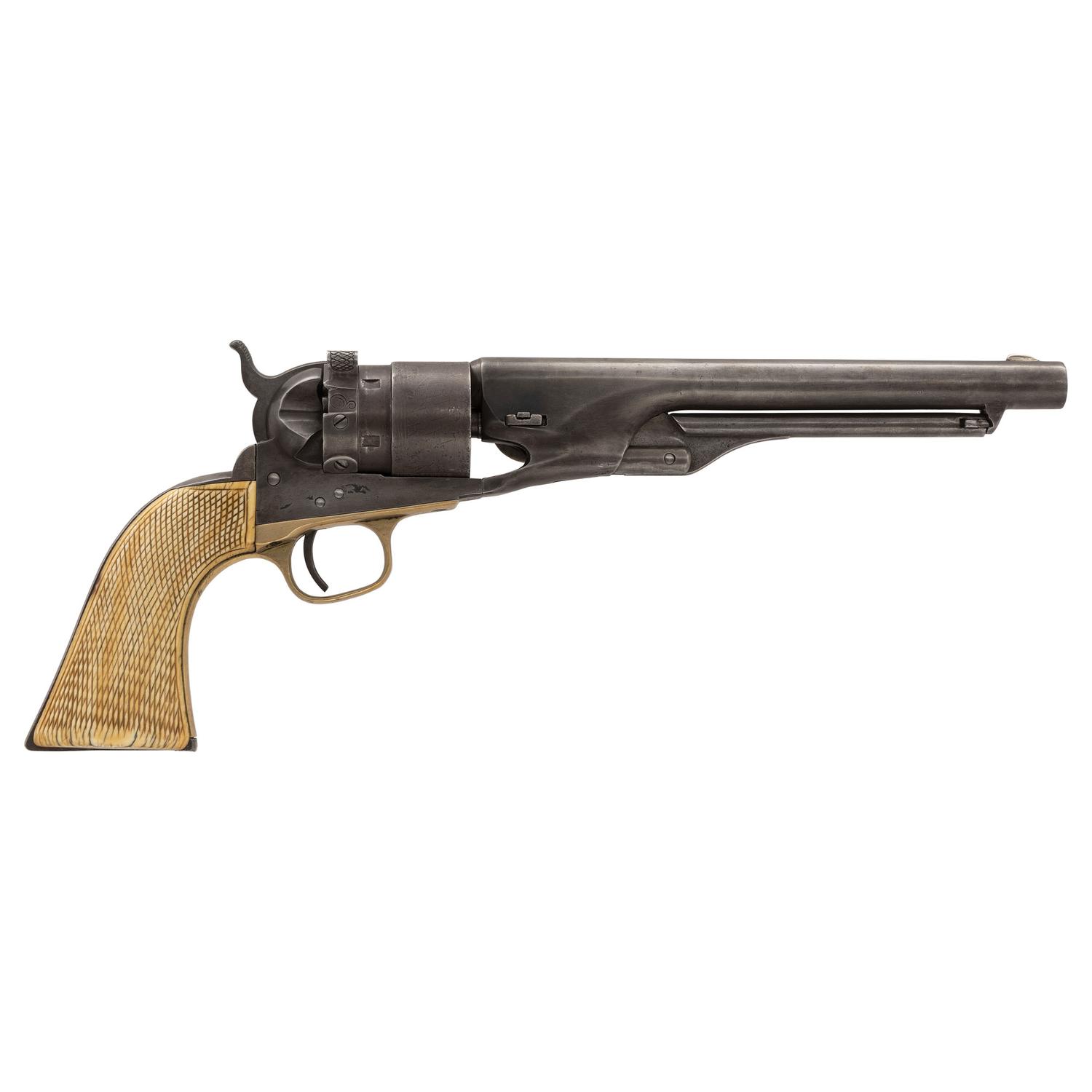

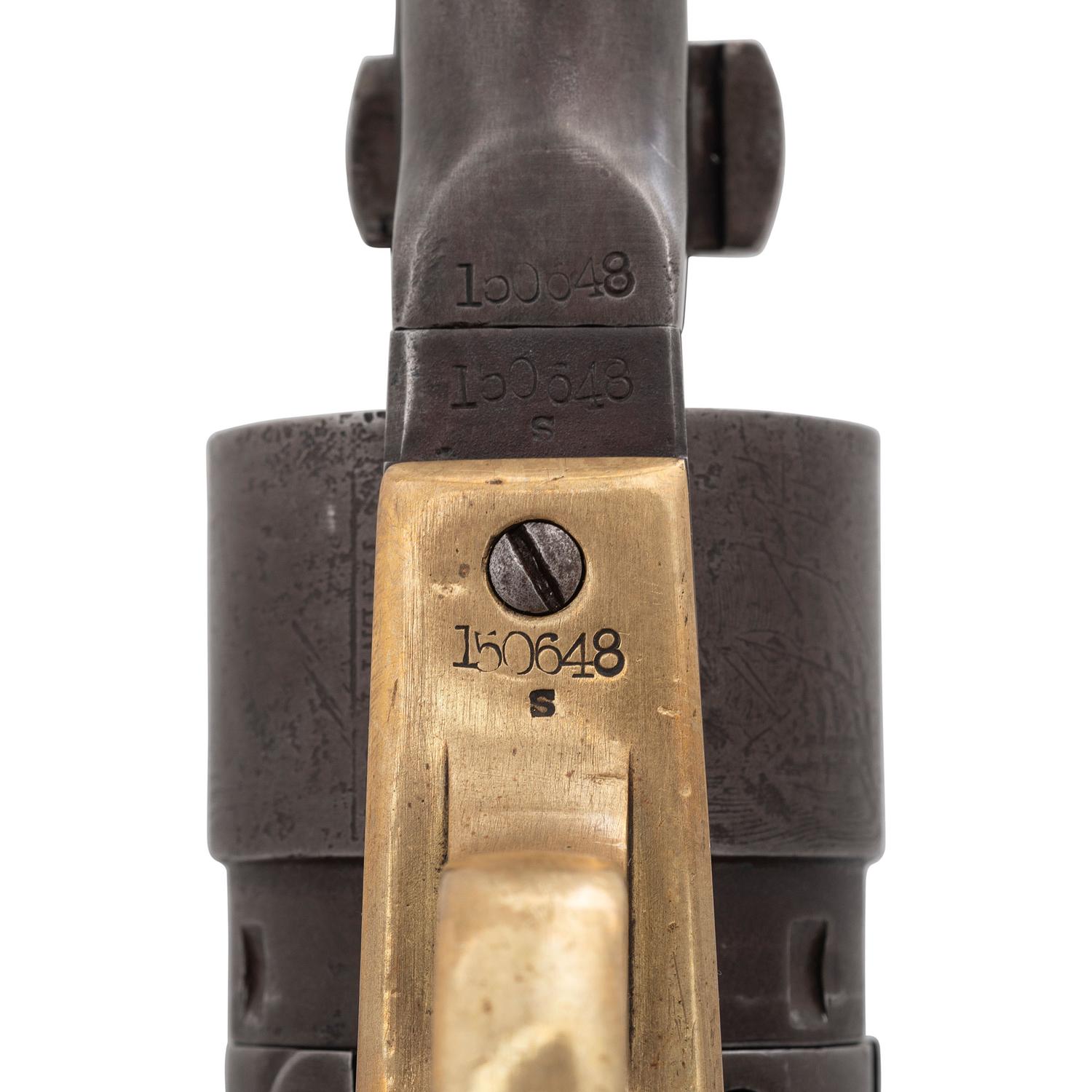

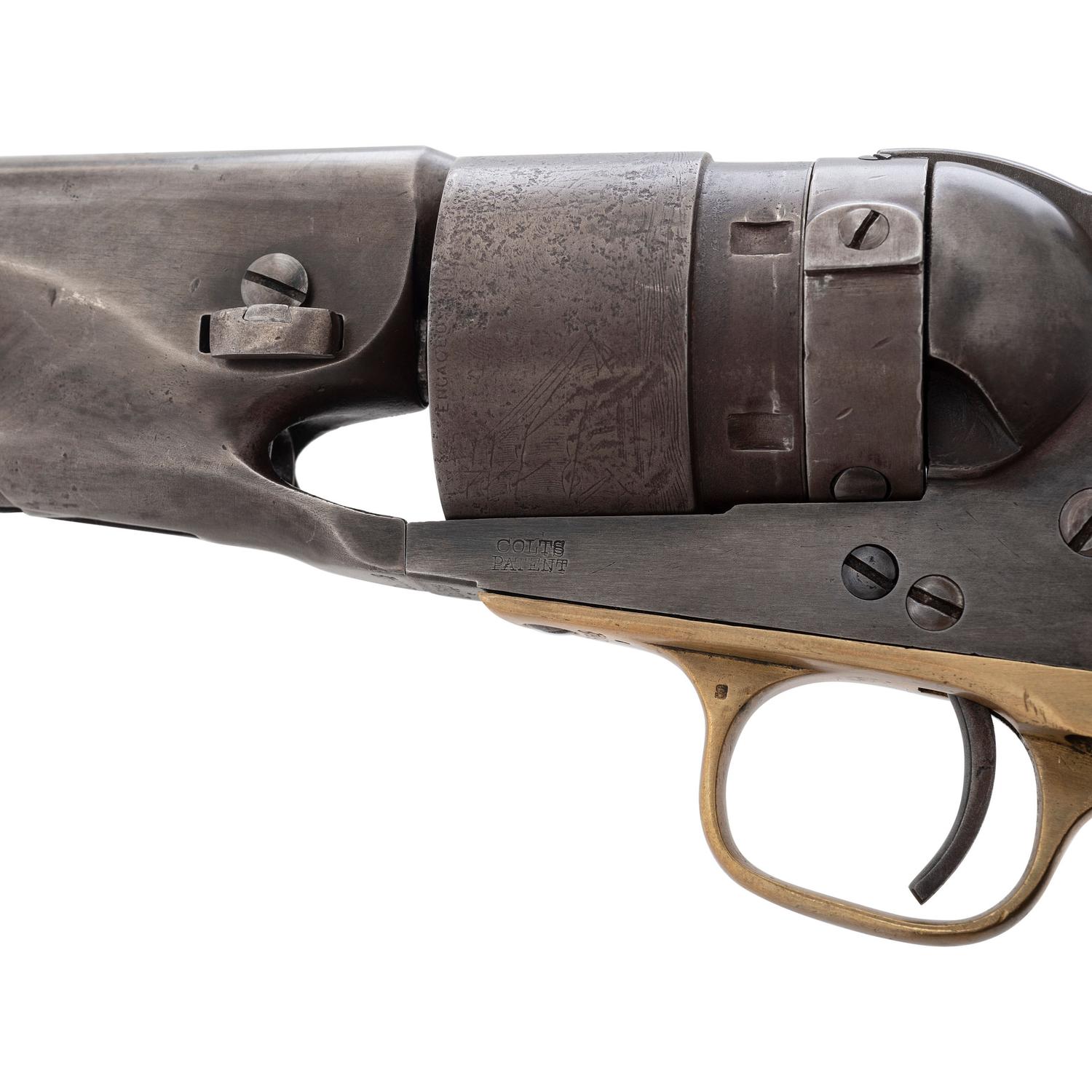

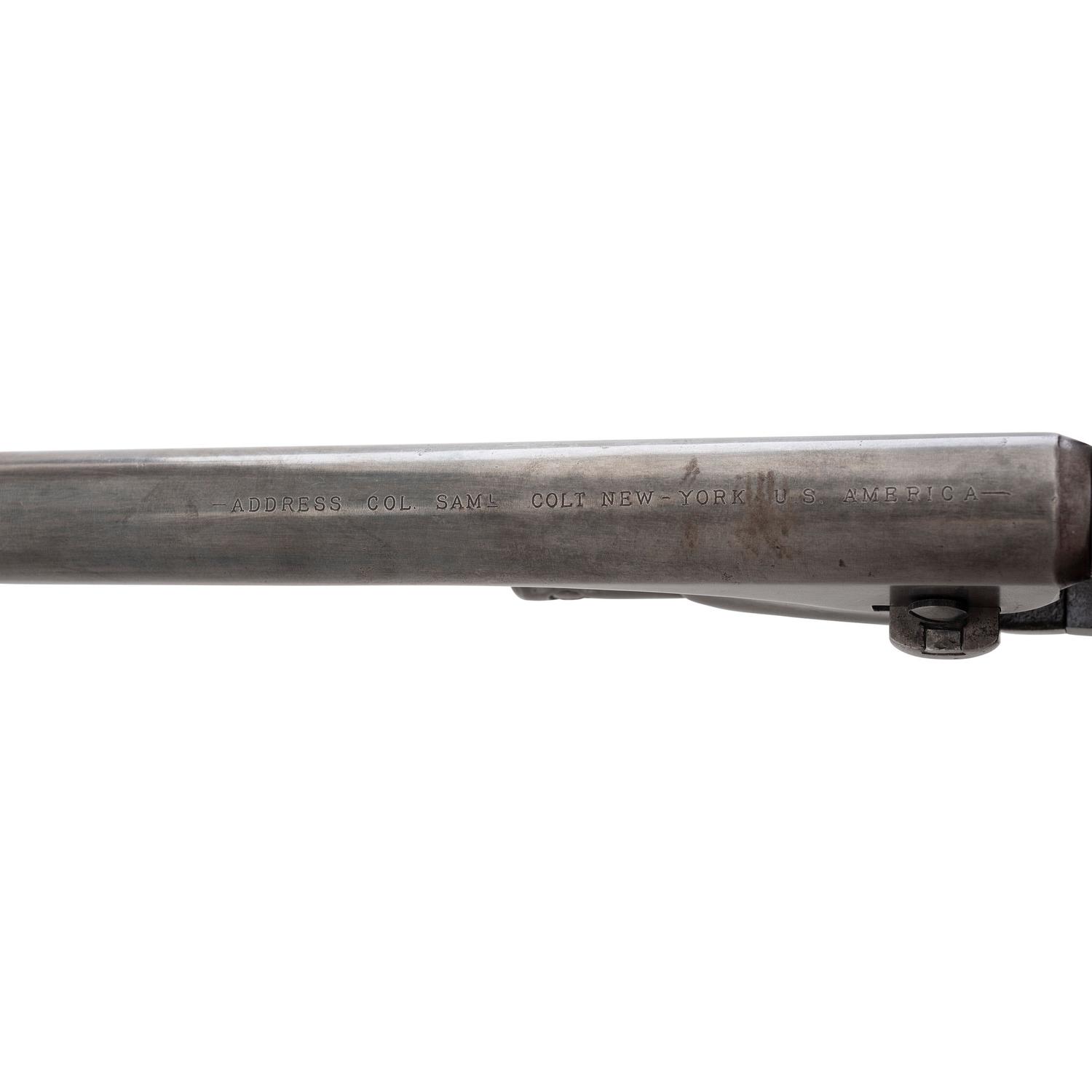

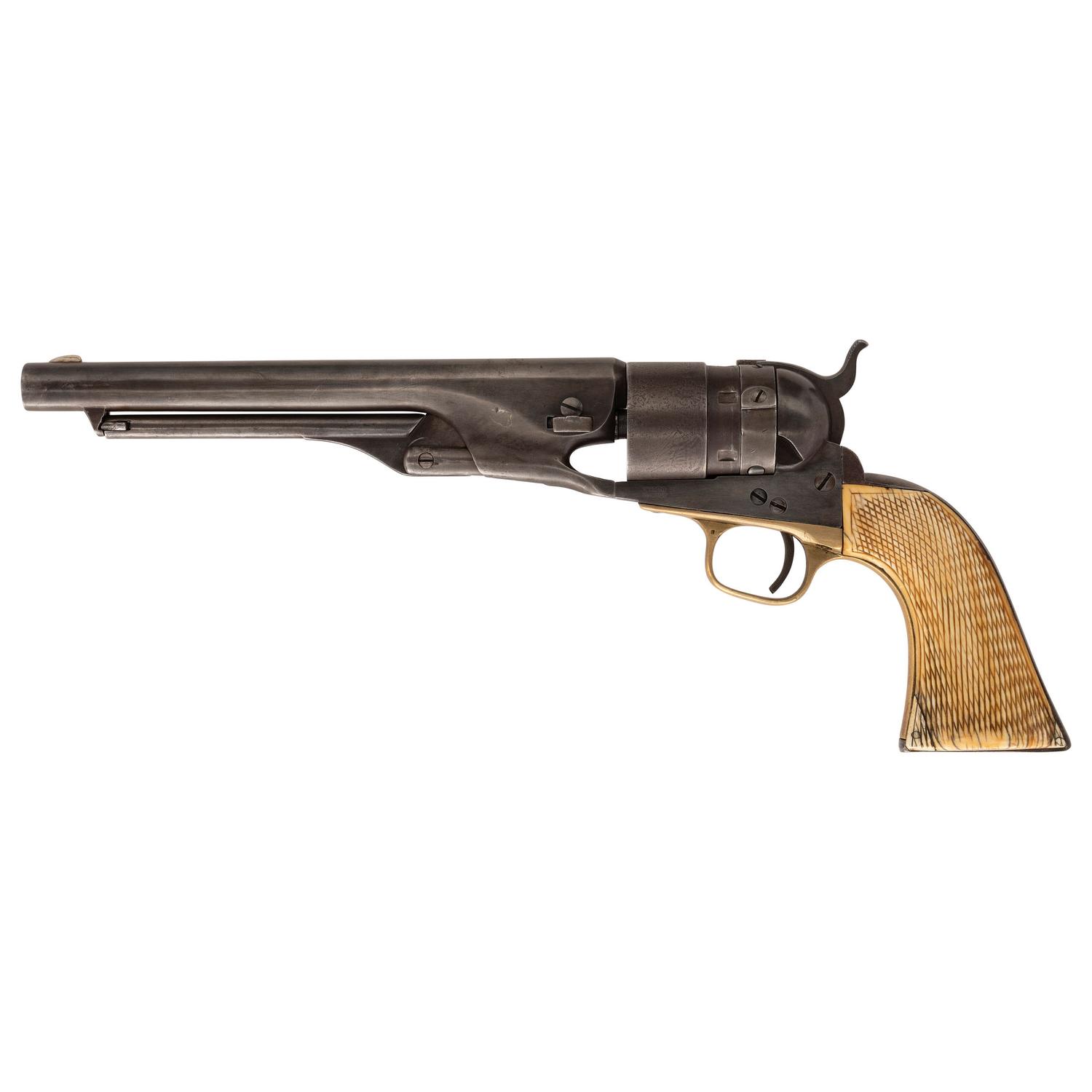

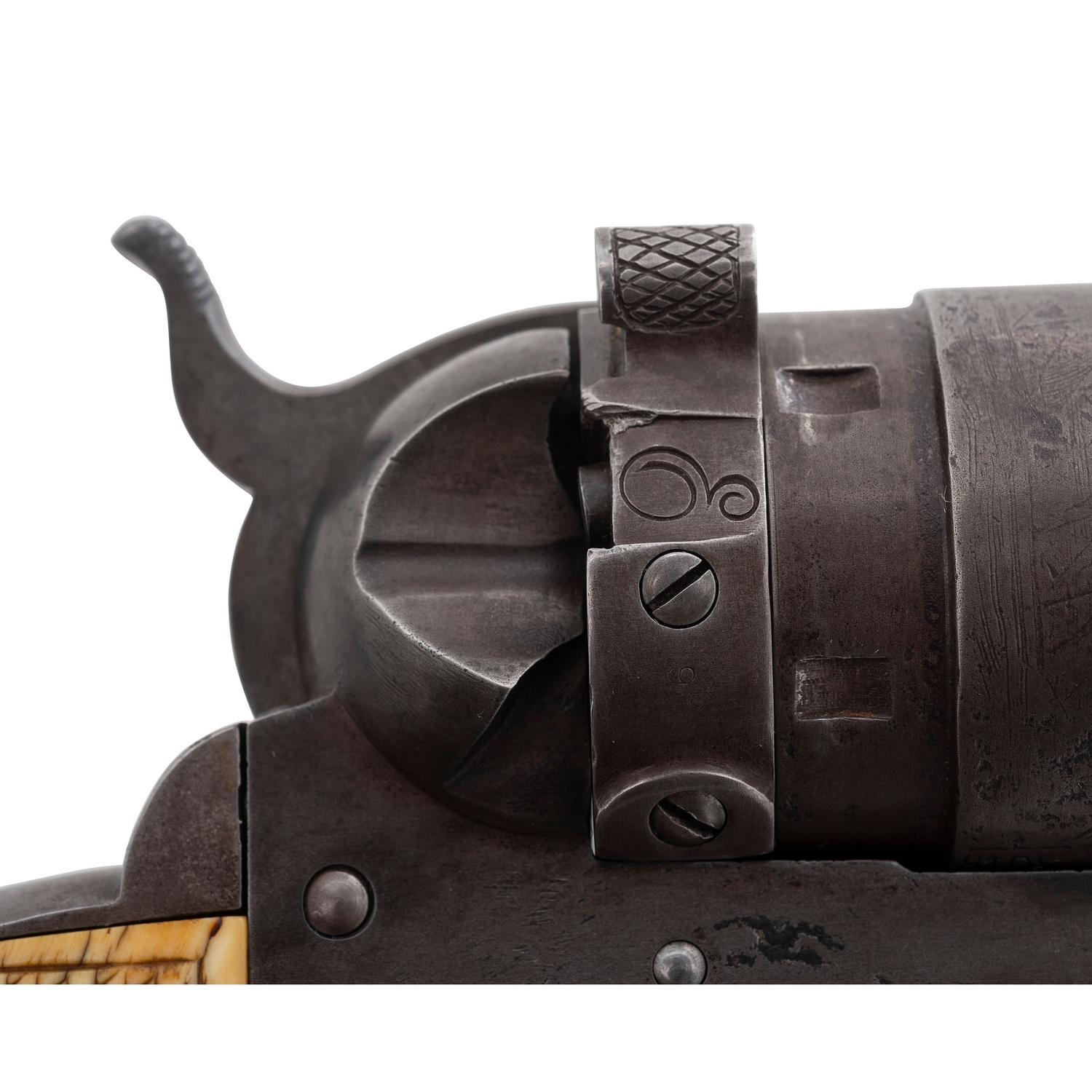

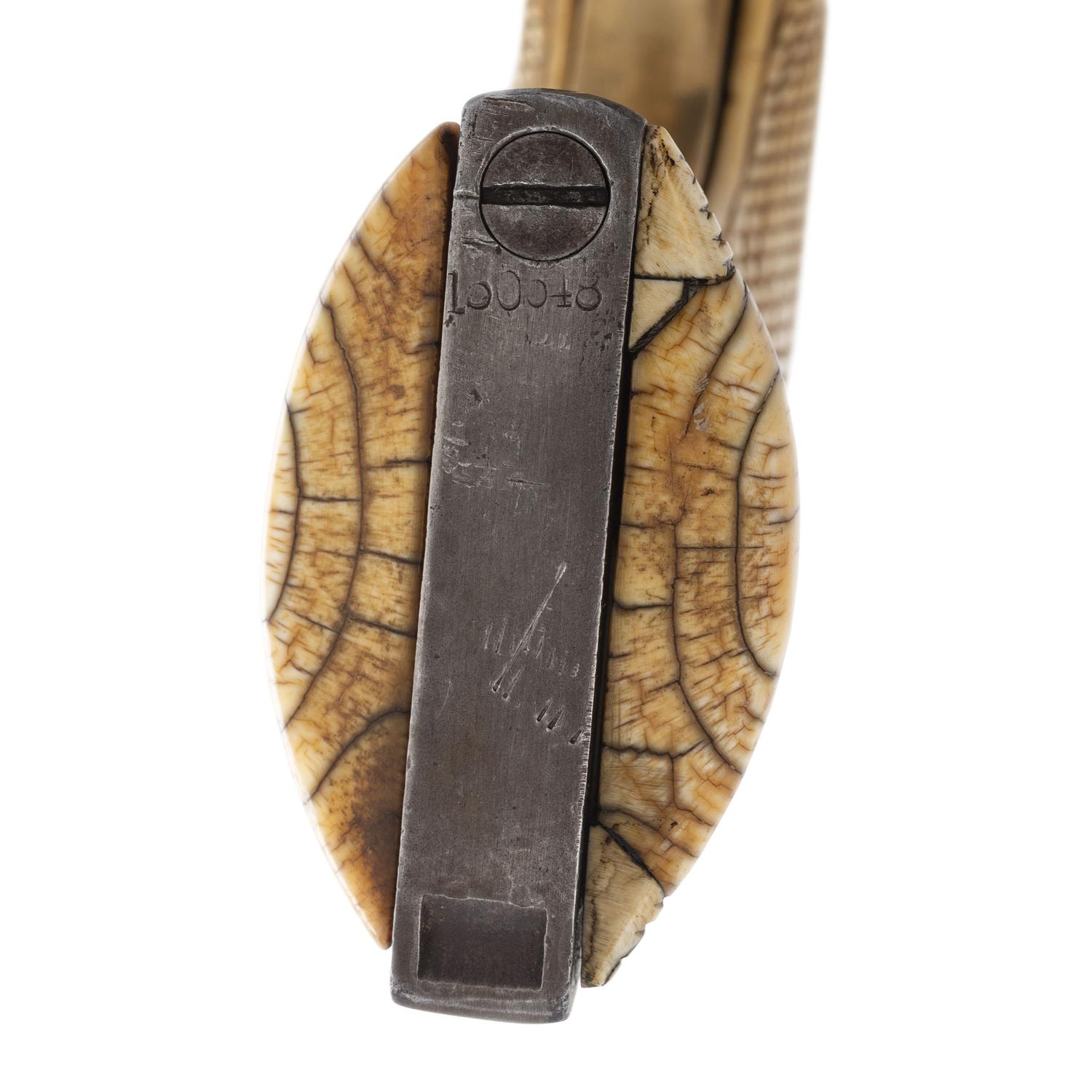

.44 Thuer Army. 8" barrel length. SN: 150648. (Mfg. Ca 1864 and converted later) Blued metal finish with casehardened frame, steel backstrap, brass triggerguard, and checkered ivory grips. Single-action front loaded cartridge revolver converted from percussion using the Thuer patented system. The left frame is struck COLT'S/PATENT with the barrel address reading -ADDRESS COL. SAML COLT NEW-YORK U.S. AMERICA-. Item features the drilled and tapped plunger designed to accept the Thuer priming punch, and a standard loading channel consistent with the Hartford Thuer conversions. The recoil shield and backstrap are cut for mounting a stock. The revolver shows martial inspection initials to numerous parts including S initial to the triggerguard bow, below the triggerguard serial number, and on the frame. A B initial appears on the inside of the backstrap. The recoil shield and cylinder are both struck R on their forward faces. The serial numbers match on the frame, gripstraps, arbor pin, and barrel. The cylinder is numbered 3015, and the wedge pin 0565. The grips are numbered 139254 on the wood core. The number 2-8 has been struck into the rear face of the barrel lug. Revolver displays an engraved E mark over the ejector position on the conversion ring. The hammer screw and wedge pin screw both show faint concentric rings consistent with modern replacements. Colt employee F. Alexander Thuer began working out the basic premise of the patents that made this item possible as early as 1866. At that time, the Rollin White patent on bored through cylinders prevented various American manufacturers from producing cartridge revolvers. Thuer's design evaded the patent through the use of a tapered case that was loaded from the front. The rotating conversion plate could be set at one of three positions: the fire position in line with a separate firing pin, a safe setting where the hammer rests behind the knurled boss on the conversion ring, and finally the ejector setting that used the hammer strike acting on an ejector to kick spent casings forward and out of the cylinder. Colt offered Thuer conversions for its major percussion models from 1868 as late as 1872, yet fewer than 5,000 of all types were manufactured. A rare example of a firearm that artfully sidestepped the infamous Rollin White patent and helped launch Colt into the manufacture of cartridge guns.
Very Good. Bore is Dark with patina throughout and some light pitting in the grooves. The metal finish overall has taken on a deep gray to brown patina with the darkest patches appearing near the interior edges of the barrel and frame. Some light pitting has formed on the underside of the barrel hidden by the ramrod, and to the face of the recoil shield and right flank of the frame. The arbor pin shows a pattern of light pitting and some weakness to the threads. The interior of the plunger has eroded with pitting obscuring the threads. Brass has some rounding on the edges and a bright finish suggesting it was buffed at some point. The grips are yellowed with age and show some weakness and rounding of the checkering at the palm swell and along the left edge of the butt. The front and rear corners of the left panel have broken off and been replaced by pinned ivory with a brighter color. The action displays good timing with some weakness to the spring.
The physical condition of lots in our auctions can vary due to age, normal wear and tear, previous damage, and restoration/repair. All lots are sold "AS IS," in the condition they are in at the time of the auction, and we and the seller make no representation or warranty and assume no liability of any kind as to a lot's condition. Any reference to condition in a catalogue description or a condition report shall not amount to a full accounting of condition. Condition reports prepared by Freeman's staff are provided as a convenience and may be requested from the Department prior to bidding.
The absence of a posted condition report on the Freeman's website or in our catalogues should not be interpreted as commentary on an item's condition. Prospective buyers are responsible for inspecting a lot or sending their agent or conservator to inspect the lot on their behalf, and for ensuring that they have requested, received and understood any condition report provided by Freeman's.
Please email [email protected] for any additional information or questions you may have regarding this lot.
